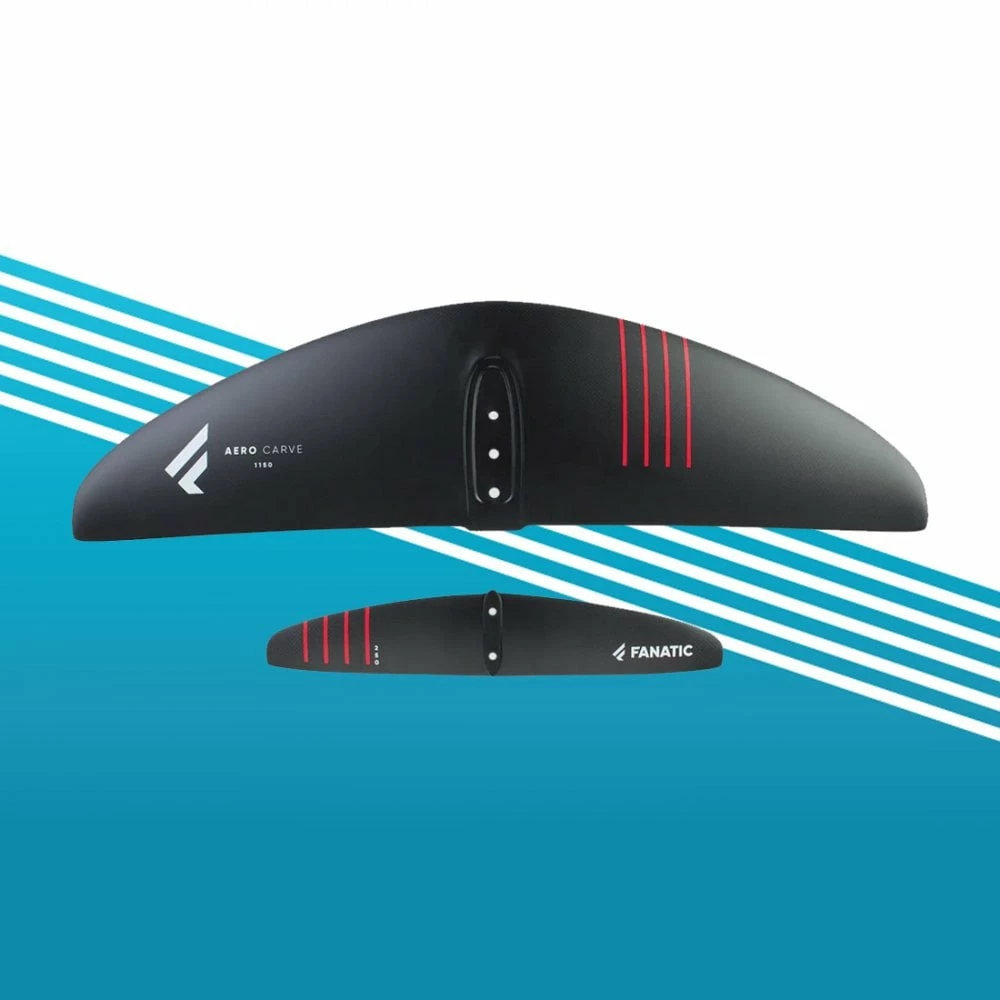

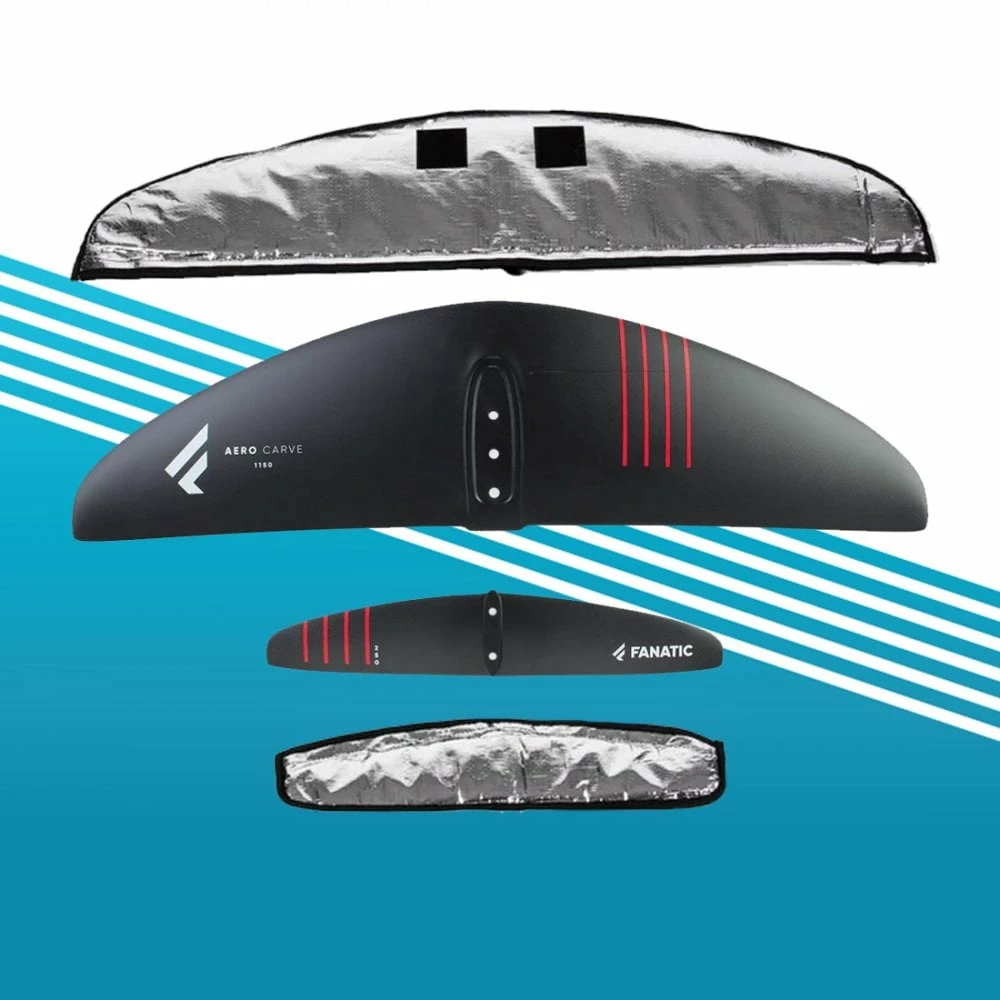

Fanatic Aero Carve Foil Wings

The Fanatic Aero Carve Foil Wings Feature:

• Modern mid to low aspect designs with fast profiles offering direct turning behaviour
• Carbon front and back wings with 30° layup for maximum performance with direct flex response and minimal weight
• New masts and fuselages with 19.5% weight reduction compared to previous AL masts/fuselage combos
• New mast profile with 14% drag reduction
• New Fuselages with highly improved trim and playfulness
• M8 & M6 Torx screws plus tools
• Wings and fuselages fully interchangeable between Aero Carve, Aero High Aspect, Aero Lift and the Flow wings with the new mount. Opening the world for higher speeds for winging with the Flow 1000 for example
• Fuselages with extra large mounting area without pockets for bulletproof connections and maximum load spread – without getting stuck
• Individual tuning through supplied wedges – changes angle of attack
• New base plate with higher walls and glued + screwed connection of mast and plate for “one-piece” connection and maximum durability



 Fanatic Aero Carve Foil Wings Specifications:

Foil	Aero Carve Range AL 3.0 750	Aero Carve Range AL 3.0 900	Aero Carve Range AL 3.0 1150	Aero Carve Range AL 3.0 1400
FRONT WING SIZE CM²	750 cm²	900 cm²	1150 cm²	1400 cm²
BACK WING SIZE CM²	216 cm²	216 cm²	250 cm²	250 cm²
FRONT WING SPAN	63 cm	70 cm	78 cm	86 cm
FRONT WING ASPECT RATIO	5.2	5.2	5.2	5.2
FRONT WING ASPECT RATIO	68 cm / 78 cm (Wing / SUP / Prone) 90 cm (Windsurf)	68 cm / 78 cm (Wing / SUP / Prone) 90 cm (Windsurf)	68 cm / 78 cm (Wing / SUP / Prone) 90 cm (Windsurf)	68 cm / 78 cm (Wing / SUP / Prone) 90 cm (Windsurf)
FUSELAGE OPTIONS	60 cm / 75 cm / 82 cm / 90 cm	60 cm / 75 cm / 82 cm / 90 cm	60 cm / 75 cm / 82 cm / 90 cm	60 cm / 75 cm / 82 cm / 90 cm
MAST OPTIONS	TRACK FOIL MOUNT	TRACK FOIL MOUNT	TRACK FOIL MOUNT	TRACK FOIL MOUNT
FRONT WING SCREWS	M8x25 Torx	M8x30 Torx	M8x30 Torx	M8x35 Torx
BACK WING SCREWS	M6x20 Torx	M6x20 Torx	M6x20 Torx	M6x20 Torx
